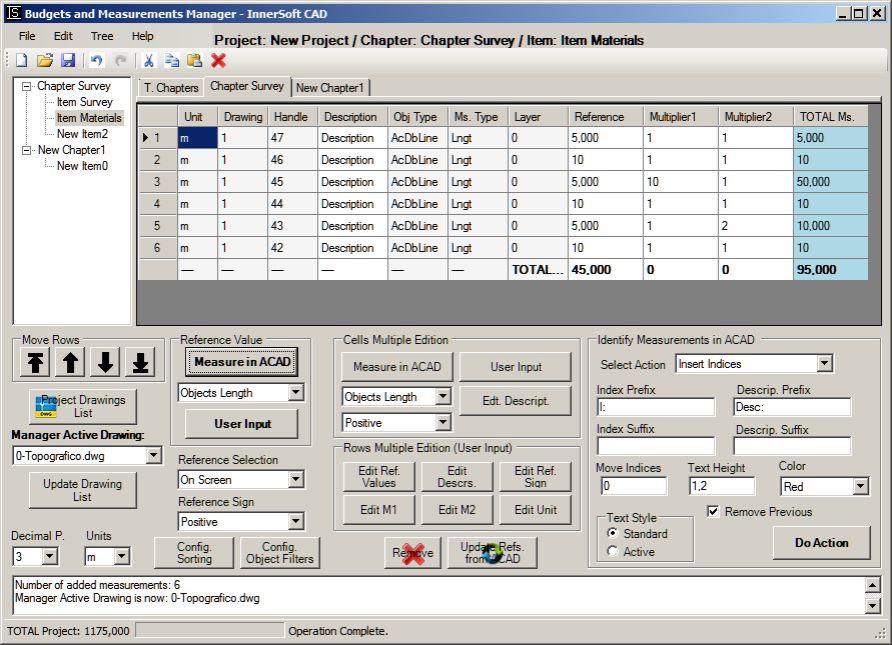

 InnerSoft CAD is an plug-in for AutoCAD that installs a set of productivity tools for Civil and Survey, Counting, Estimating and measurements in construction project budgets. You can Export to an Excel Sheet the values of Area/Length property or coordinates for various AutoCAD entities; Import ../2600/from_an_Excel_Sheet_the_vertex_coordinates_for_a_set_of_2D_polylines_or_3D_polylines__you_can_choose_between_3_different_methods.css). You can also import a set of points from Excel or a set of Texts with an insertion point for each one; Extract all block definitions of a drawing in individual AutoCAD files (each block definition in a single file); Sum the area or length property of a set of objects. Sum accumulated distance of a user defined walk in the drawing; Draw the longitudinal profile of a terrain or set of surfaces. Triangulate a set of points or mesh a model surface; Take measurements on AutoCAD for construction project budgets; Create, open or save different libraries, which contain a series of AutoCAD drawings (*.dxf or *.dwg) organized by books; Draw a polyline graph, a 2D & 3D convex hull; lines, planes, circles and spheres by regression from a selection of points; clothoids, parabolas, circular transition curves, Wholly Transitional Curves, clothoid transition curves and parabolic vertical transitions.
Related Searches: autocad, excel, import, export, measurements, Civil and Survey, Counting, Estimating, construction project budgets
Recent Changes: New tool to draw a catenary in AutoCAD. Catenaries added to Geometric Tools.
Install Support: Install and Uninstall
Supported Languages: English, Spanish
Additional Requirements: 10 MB Available Hard-Disk Space. AutoCAD 2007 Installed.
|
