STL Import for Bricscad 1.0 - Description and Download Information

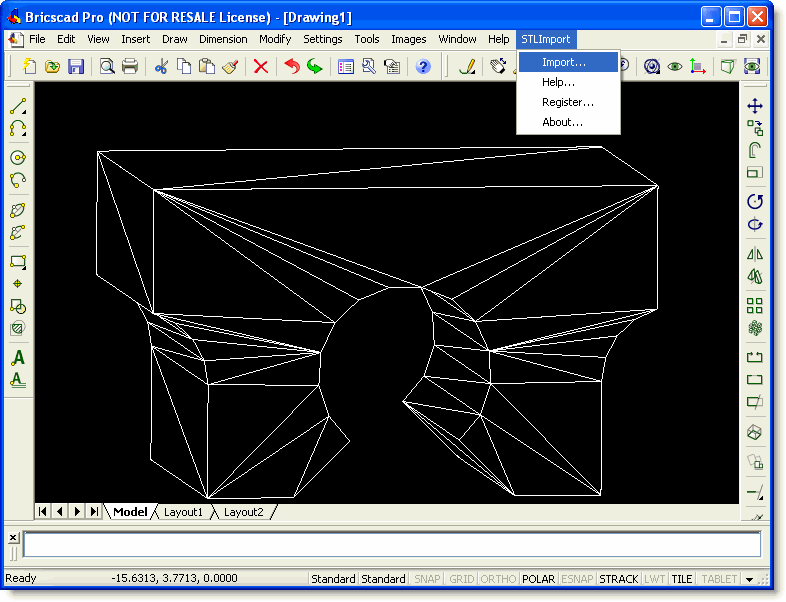

Click to view STL Import for Bricscad 1.0 screenshot

Author:

SYCODE
All programs by this author

License:

Commercial [?]

Cost:

$95.00 US

Operating Systems:

win9xme winnt4 win2000 winxp winvista winvistax64 winserver

Size:

1264K

Last Updated:

2009-01-02

Our Rating:

Not rated yet...

Users Rating:

not rated yet     (total votes: 0)

Feedback:

Report broken download
Report spyware or virus [?]

Download STL Import for Bricscad 1.0

STL Import for Bricscad iconSTL Import for Bricscad is a Stereolithography STL file import plug-in for Bricscad® powered applications. This plug-in gives Bricscad powered applications the ability to import geometric data from ASCII and Binary STL files.

The STL file format is the Rapid Prototyping industry's standard data transmission format and is the format required to interact with stereolithography machines. Stereolithography files contain solids which are made up of 3 sided facets. STL Import for Bricscad converts these facets into a single PolyFace Mesh entity and adds it to the active drawing.

STL Import ../css/document_which_can_be_found_in_the_installation_folder._Once_loaded_it_adds_new_commands_to_Bricscad_a0oaascfq56zw8nmpjtf4m.css's existing commands and a new submenu called &../35153/quot.css;STLImport&../35153/quot.css; to the Bricscad menu containing these newly added commands.

STLImport - Imports an STL file
STLImportHelp - Displays the STL Import for Bricscad help file
STLImportRegister - Registers your copy of STL Import for Bricscad
STLImportAbout - Displays the STL Import for Bricscad About box

The STL File Format

The STL file format is the Rapid Prototyping industry's standard data transmission format and is the format required to interact with stereolithography machines. Stereolithography files contain solids which are made up of 3 sided facets. STL files may be ASCII or binary data, although binary is far more common due to the resulting size of the CAD data when saved to the ASCII format. A STL file describes a raw unstructured triangulated surface by the unit normal and vertices (ordered by the right-hand rule) of the triangles using a three-dimensional Cartesian coordinate system. Many CAD systems are able to output the STL file format among their other formats, but very few have the ability to import STL files.


Related Searches: STL, Import, Bricscad, STL Import for Bricscad, Model, 3D Model, Stereolithography, stereo, lithography, rapid, prototyping, rapid prototyping, stl software, import, import stl, open, open stl, file, stl file, add-in, addin, plug


Recent Changes: Not Established

Install Support: Install and Uninstall

Supported Languages: English

Additional Requirements: Bricscad 8 and above
