 The calculation is designed for a geometrical design and strength check of a prestressed bolt connection, loaded
by static or cyclic loading resp., acting both in the axis of the bolt and in the plane of the connected parts.

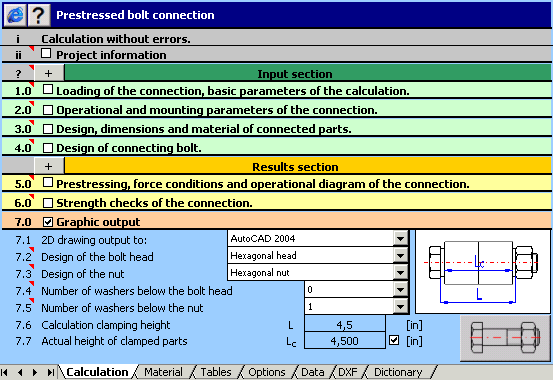

Application is developed in MS Excel, is multi-language, supports Imperial and Metric units and solves the following
main tasks:
- Automatic design of a connection bolt of standard design.
- Calculation and check of connections fitted with special shanks.
- Design and calculation of necessary mounting prestressing of the connection and fastening torque.
- Calculation of force conditions of a loaded connection.
- Static and dynamic strength check.
- The application includes a table of commonly used materials of bolts according to ISO, SAE and ASTM, and a
selection of materials of the connected parts according to AISI/SAE, DIN, BS, AF and others.
- Support of 2D CAD systems (AutoCAD, AutoCAD LT, IntelliCAD, TurboCAD?)
The calculations use data, procedures, algorithms and data from specialized literature and standards ANSI, ISO,
DIN.
Used standards: ANSI B1.1, ANSI 273, ANSI B18.2.1, ANSI B18.2.2, ANSI B18.3, ANSI B18.6.2, ANSI B18.6.3,
ANSI B18.22.1, ISO 273, ISO 1207, ISO 4016, ISO 4032, ISO 4035, ISO 4762, ISO 8738, VDI 2230.
This module is a part of MITCalc - Mechanical and Technical Calculation Package for gear, belt and chain drives,
springs, beam, shaft, bolt connection, shaft connection, tolerances and many others
Related Searches: Bolt, bolt connection, bolt calculation, prestressed bolt, strength check, VDI 2230, ANSI B1.1, ANSI 273, ANSI B18.2.1, ANSI B18.2.2, ANSI B18.3
Recent Changes: Not Established
Install Support: Install and Uninstall
Supported Languages: English, German, French, Italian, Spanish, Czech, Portuguese, Chinese Simplified, Chinese Traditional
Additional Requirements: Microsoft Excel (2000, XP,2007, 2010, 2013...)
|
