 Home: \ Business \ Math & Scientific Tools \ Double Pipe Heat Exchanger Design 2.1.0.2

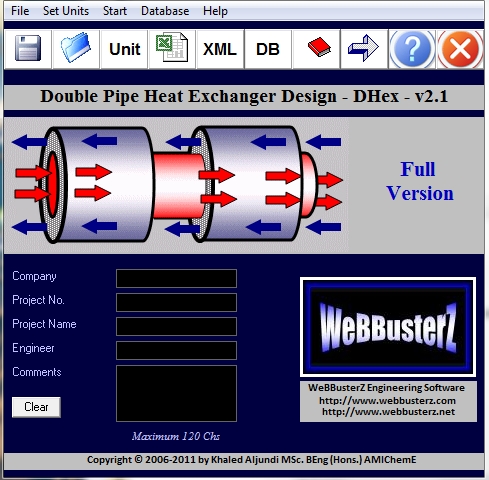

 Double Pipe Heat Exchanger Design 2.1.0.2 - Description and Download Information Author: License: Demo [?] Cost: \$75.00 US Operating Systems: Size: 14553K Last Updated: 2012-11-02 Our Rating: Users Rating: (total votes: 0) Feedback: -Software Features- +Step by step calculation +Support S.I & English (U.S) Units of measurement. +Ability to import properties to Hot/Cold sides from Microsoft Excel. +Save/Load results +Export Results to Microsoft Excel Engineering Datasheet -Calculations- +Calculate unknown Cold or Hot side temperatures. +Perform thermal analysis for bare tube double pipe (hairpin) heat exchangers. +Perform thermal analysis for finned tube double pipe (hairpin) heat exchangers. +Choose from Counter Current or Co-Current Flow arrangement +Choose from Series arrangement or Series-Parallel arrangement. +The software will also tell you the location of Hot/Cold fluids within the heat exchanger (Inner Pipe or Outer Pipe). +Select from different correlations to calculate Cold/Hot side heat transfer coefficient. Also the ability to adjust Nusselt number if you do have a different correlation. +Calculate the Area, Flow area, Length, Log Mean Temperature Difference, Number of Hairpins, Unknown Flow rate. +Calculate the scale resistance (dirt factor), Equivalent Diameter. +Calculate Pipe/Annulus side Reynolds, Nusselt numbers & Prandtl Numbers. +Duty, Clean and Design Overall heat transfer coefficient calculations +Pipe/Annulus velocities and Mass velocity calculations +Number of Transfer Units & Thermal Capacity ratio calculation. +Clean and Fouled Fin Efficiency calculations for finned tube heat exchanger. +Pressure drop calculations & Entrance and Exit losses. -Databases +Physical properties estimation of pure components for more than 1450 components; the database has the ability to estimate Thermal Conductivity, Density, Heat Capacity and Viscosity. The database also included & come as a standalone interface but easily integrated with the software. +Estimate mixture properties. (ALL ESTIMATION METHODS CURRENTLY SUPPORT LIQUIDS ONLY) +User database functions to allow user to add/delete components and load to hot/cold side (Empty database!) +Fouling factors Related Searches: heat exchanger, double pipe, hairpin heat exchangers, thermal design calculations Recent Changes: Added export to Microsoft Excel 97/2003 Engineering datasheet, now you can choose to export to either Microsoft Excel 2007/2010 or older excel versions, Corrected a bug in the loading module causes the software not Install Support: Install and Uninstall Supported Languages: English Additional Requirements: Windows operating system, 20MB Free space
