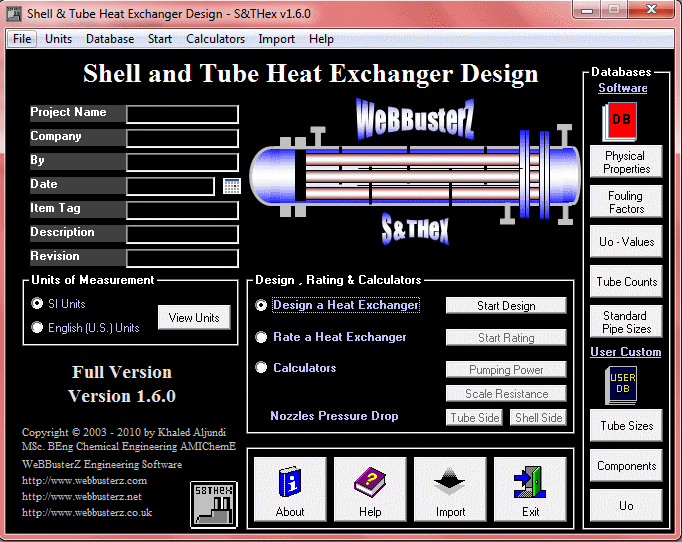

 Software Features-----
+Step by step design and rating calculations
+Support S.I Units and English (U.S) Units of measurement
+Rating and Design Modes
+Save/Load results.
Results:-----
+Export Results to Shell & Tube Engineering Data sheet. You can print the data sheet or export it to pdf format or Microsoft Excel for editing
+Export Results summary to Microsoft Excel, Print Results summary.
Calculations:
+Duty, Shell/Tube velocities, Unknown shell or tube side temperatures, also calculate unknown exit temperatures in rating mode
+Number of Baffles and Baffle spacing, Scale resistance (dirt factor)
+Overall heat transfer coefficient for both Clean and Fouled conditions
+Select from different correlations to calculate shell or tube heat transfer coefficient
+Shell/Tube side Reynolds & Nusselt numbers
+Pressure Drops.
+Recommended minimum shell thickness, minimum recommended number & diameter of rods.
+Calculate Shell/Nozzle/Channel/Head/Tube sheet Thickness..
+Number of transfer units, Effectiveness, Thermal capacity ratio
+Pumping power / Inlet and Exit Nozzles pressure losses / Scale resistance Calculators
+Ability to import properties to Shell/Tube sides form Microsoft Excel very useful if you want to import your own physical properties
Included Databases:-----
+Estimate the Physical properties of pure components for more than 1450 components; the database has the ability to estimate Thermal Conductivity, Density, Heat Capacity and Viscosity. The database also included critical properties, boiling and melting points and come as a standalone interface but easily integrated with the software.
+Estimate mixture properties. (ALL ESTIMATION METHODS CURRENTLY SUPPORT LIQUIDS ONLY)
+Ability to add your own properties in the additional user databases.
+Fixed tube sheet counts and standard tube sizes tables
+Fouling factors and Overall heat transfer coefficients included.
Related Searches: heat, exchanger, design, rating, shell, tube, process, chemical, engineering
Recent Changes: Added rating mode,extra calculations and improved interface
Install Support: Install and Uninstall
Supported Languages: English
Additional Requirements: Windows, 64MB RAM, 30MB free disk space
|
