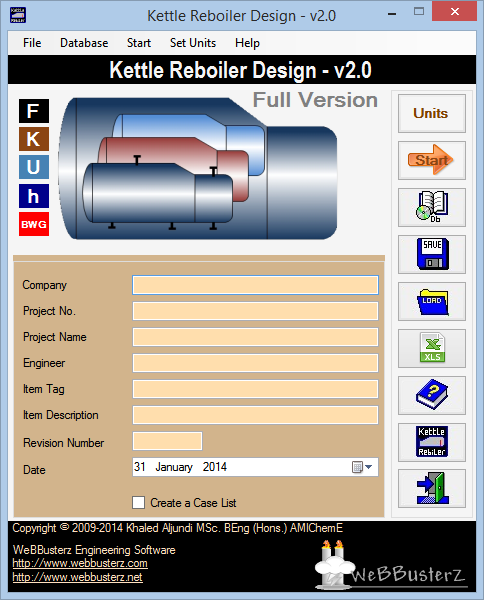

 This software tool is made to demonstrate the thermal design calculations and analysis of Kettle type reboilers.The software is user friendly and can be used to make preliminary sizing calculations that will help to give a clear outlook of the initial design. Below is a list of the main features:
+ Ability to use to different units of measurement, SI units and English (US) units
+ Calculation of Duty, Area, Tube length.
+ Calculation of number of tubes
+ Calculation of Shell Diameter by iteration
+ Calculation of Weir height
+ Calculation of Nucleate pool boiling heat transfer coefficient using two different correlations
+ Calculation of tube side heat transfer coefficient using two different correlations
+ Calculation of Velocities on the tube and shell side
+ Calculation of Maximum allowable vapour velocity on the shell side
+ Calculation of the Maximum critical flux using three different correlations
+ Calculation of Shell side Heat Flux
+ Calculation of Number of Vapour nozzles
+ Calculation of Prandtl number on shell and tube sides and Reynolds number for the tube side
+ Calculation of Clean/Fouled Overall Heat transfer coefficients
+ Calculation of Tube side pressure drop
+ The ability to calculate unknown mass flow rate
+ Calculate the scale resistance (dirt factor)
+ Ability to import properties to Shell/Tube sides form Microsoft Excel
+ Compare upto 5 different cases in one window
+ Save/Load results.
+ Generate/Print Results summary and export it to Ms Word and paste it to whichever suitable
Included Databases:
+ Estimate the Physical properties of pure components for more than 1450 components; come as a standalone interface but easily integrated with the software.(included with the full version)
+ Ability to add your own properties in the additional user databases.
+ Fouling factors, Overall heat transfer coefficients and film heat transfer coefficients included
Related Searches: kettle reboiler, shell and tube, heat exchanger, thermal analysis, design, sizing calculations
Recent Changes: Not Established
Install Support: Install and Uninstall
Supported Languages: English
Additional Requirements: 30 MB Free space, Window operating system
|
