 Solution for integration of the SNMP network management and data pre-processing with SCADA using OPC interface or Web Services
It has the following features:
- usable for managed and unmanaged devices
- implemented OPC specifications:OPC DA 3.0, 2.05,1.0, OPC XML DA, OPC Alarms and Events Version 1.1 and 1.0, OPC UA 1.1
- implemented protocols: SNMPv2c, SNMPv1
- using SNMP commands GET, SET and traps
- using ICMP ping to manage devices without running SNMP agent and displaying of round trip time as one OPC variable
- tags in address space of the OPC server are defined using MIB object identifier (Object ID), for example .1.3.6.1.4.1.2681.1.2.102; defined Object ID's can be validated by input in OPC configurator
- the possibility to manage unlimited number of devices with running SNMP agent
- pre-processing data using JScripts
- support of global JScript variables to enable for example implementation of historical data processing, filtration or other algorithms
- on line MIB Browser, which scans SNMP manageable devices for its SNMP variables that correspond to MIB objects
- offline MIB Browser - import from MIB files
- import/export from/to csv-files
- IP Scanner, which is used for scanning computer network communities in defined IP area
- logging of SAEAUT SNMP OPC Server activities to log-files
- find functionality for easy finding of items in address space of the OPC server
Installation package contains:

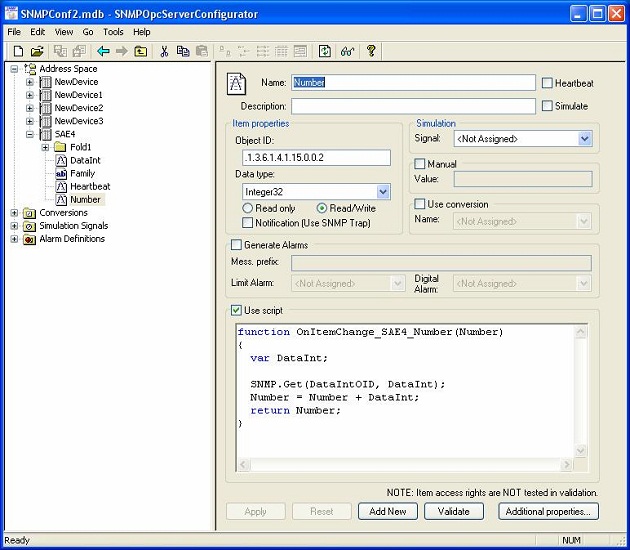

- SNMP OPC Server configurator with built in JScript editor
- runtime application (SNMP OPC Server process)
- OPC XML-DA wrapper
- OPC UA wrapper
- OPC UA test client
-OPC DA and XML DA client
- source code examples for OPC test clients (written in VB6 and VB.NET) for the communication with SNMP OPC server, using OPC DA3 interface or Web Services
- SAEAUT OPC WebView access to the OPC server address space trough web
Ver. Professional can run also as a Windows service.
Related Searches: SNMP OPC Server, OPC XML, OPC DA, OPC AE, OPC UA, MIB, SNMP, SAEAUT, industrial ethernet, TCP IP, ethernet, OPC, SNMP, network monitoring, hmi, ethernet network, SAEAUT, JScript, SCADA, MIB browsing, ping, IP scanning, snmp v1, snmp v2c, SAE Automation, managed device
Recent Changes: Common installation file for x86 an x64 OS platforms, improvements related to working with UAC, settings for SNMP service and start of the service is provided by installation.
Install Support: Install and Uninstall
Supported Languages: English
Additional Requirements: Computer/Processor Pentium II compatible CPU,Memory: recommended 512 MB,installed SNMP service
|
